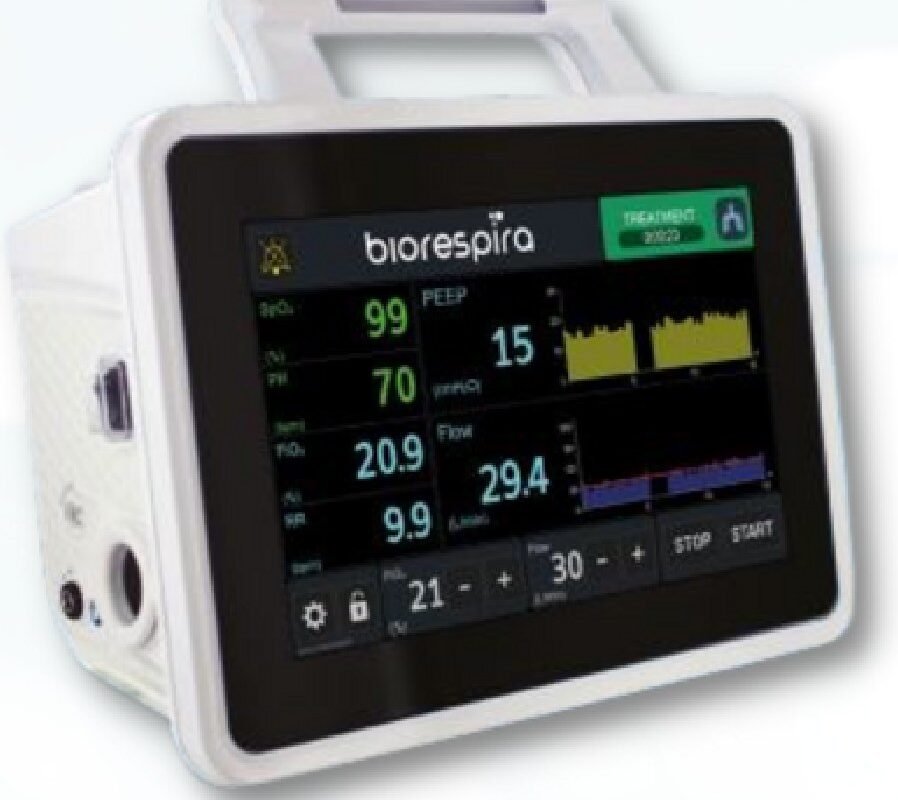

Biorespira Portable Pulmonary Ventilator

Portable, non-invasive pulmonary ventilator for clinical and home use, with high flux generator and touchscreen monitoring.

No payment is taken online. Add the items you need, then send the list to our team for pricing.

Product Description

Portable, non-invasive pulmonary ventilator for clinical and home use, with high flux generator and touchscreen monitoring.

Portable and non-invasive pulmonary ventilator developed to assist lung ventilation in both clinical and home set up
High flux generator capable of generating high flows (10-120L/min)
Turbine operation optimizes oxygen consumption allowing the hospital’s oxygen system to support more patients
Antibacterial air filter that prevents spread of aerosol infections
Direct reading of PEEP pressure, respiratory rate and O2 saturation
Compact and portable with a user friendly interface
Built-in patient bed coupling
Oxygen hook-up through a cylinder or directly from the wall

Brand	Biorespira
Flow range	10-120 L/min
Weight	3 kg (6.6 lb)
Dimensions	291(W) x 259(H) x 203(D) mm
Display	10 inch touchscreen
Power	24V switching power adapter AC/DC (100-240V 50-60Hz)
Monitoring	PEEP pressure, respiratory rate, O2 saturation
Filtration	Antibacterial air filter
Inclusions	1x Power Supply, 1x Power Cord, 1x Pulse Oximeter, 1x Oxygen Tube
Disposable kit options	Helmet Kit or Mask Kit
Helmet Kit contents	1x Hood for CPAP therapy, 2x Inter-Guard breathing filter with luer port, 1x Multi-channel Oxygen Tube non-PVC 2.1m, 1x 22mm Smoothbore Tube 22F-22F 1.8m, 1x Junction, 1x PEEP Valve
Mask Kit contents	1x Face Mask, 1x Inter-Guard breathing filter with luer port, 1x Multi-channel Oxygen Tube non-PVC 2.1m, 1x 22mm Smoothbore Tube 22F-22F 1.8m, 1x 'T' Junction, 1x PEEP Valve
